Basic Feature

TY450 is the Steel backed bronze alloy lined bearing material, the work surface can be produced the oil groove if requested which can improve the oil giving system. Characteristic compare with the traditional steel bushes this structure provides the material have lower friction, excellent wear resistance, higher temp. can bear etc. . Now the bearings have been succeed in the high speed mold & Die industries.

Technical Parameter

TY standard	Steel	CU	Max. Load Static	Max. Load Dynamic	Max. Speed	Max. PV	Friction coefficient	Temp.
TY450	≥45hrc	≥80hb	50n/mm2	30n/mm2	2m/s	1.8n/mm2*m/s	0.03～+0.20	-50～+250

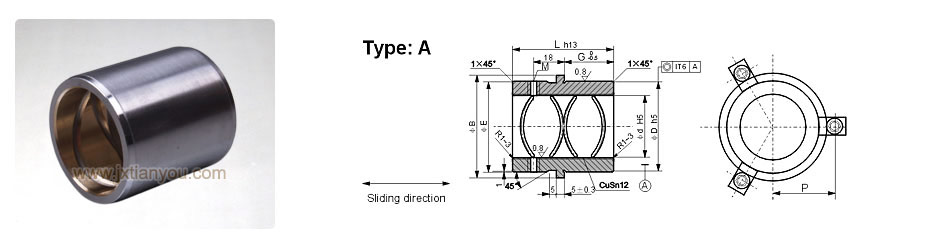

TYB-S45C Steel backed bronze alloy lined bearings

unit(mm)
type	d	d	b	c	e	f	g	l	m	n	p	housing
b	18-19	28	34	29	-	8	18	31	-	5	20.5	28+0.013 0
							37	50
a				-	31	-	18		m6*1	-
							27	70
							18
b	24-25	38	44	39	-	12	23	36	-	5	25.5	38+0.016 0
							42	55
a				-	41	-	23		m10*1	-
							32	80
							23
b	30-32	45	53	48	-	16	30	43	-	5	31.5	45+0.016 0
							47	60
a				-	50	-	26		m10*1	-
							37	90
							26
b	40-42	54	63	58	-	19	38	51	-	8	36.5	54+0.019 0
							54	67
a				-	60	-	30		m10*1	-
							47	100
							30
b	50-52	65	79	74	-	19	48	61	-	8	44.5	65+0.019 0
							62	75
a				-	76	-	35		m10*1	-
							57	110
							35
b	63	81	92	87	-	19	61	74	-	8	51	81+0.022 0
							77	90
a				-	89	-	48		m10*1	-
							67	130
							48
b	80	100	111	106	-	19	78	91	-	8	60.5	100+0.022 0
