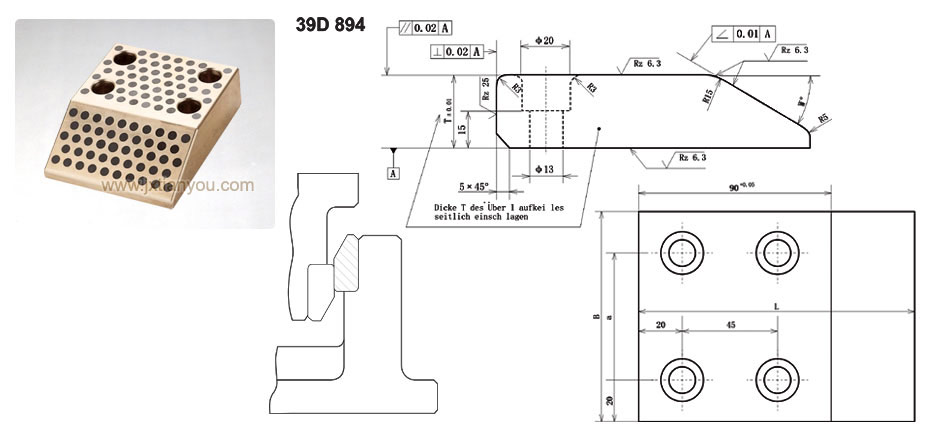

Home > Products > Commonly used guiding device for automobile molds > 39D 894
| Unit(mm) | ||||||||
| AusfÜhrung | W。 | B | L | T | a | Zyl.-Schraube | ||
|---|---|---|---|---|---|---|---|---|
| Stck. | DIN ISO 4762(DIN912) | |||||||
| 39D 894 | /10 | 20。 | 100 | 170 | 45 | 60 | 4 | M12×40 |
| /11 | 125 | 85 | ||||||
| /12 | 150 | 110 | ||||||
| /13 | 200 | 160 | ||||||
| /14 | 30。 | 100 | 150 | 45 | 60 | 4 | M12×40 | |
| /15 | 170 | 60 | ||||||
| /16 | 125 | 150 | 45 | 85 | ||||
| /17 | 170 | 60 | ||||||
| /18 | 150 | 150 | 45 | 110 | ||||
| /19 | 170 | 60 | ||||||
| /20 | 200 | 150 | 45 | 160 | ||||
| /21 | 170 | 60 | ||||||
| /22 | ||||||||
